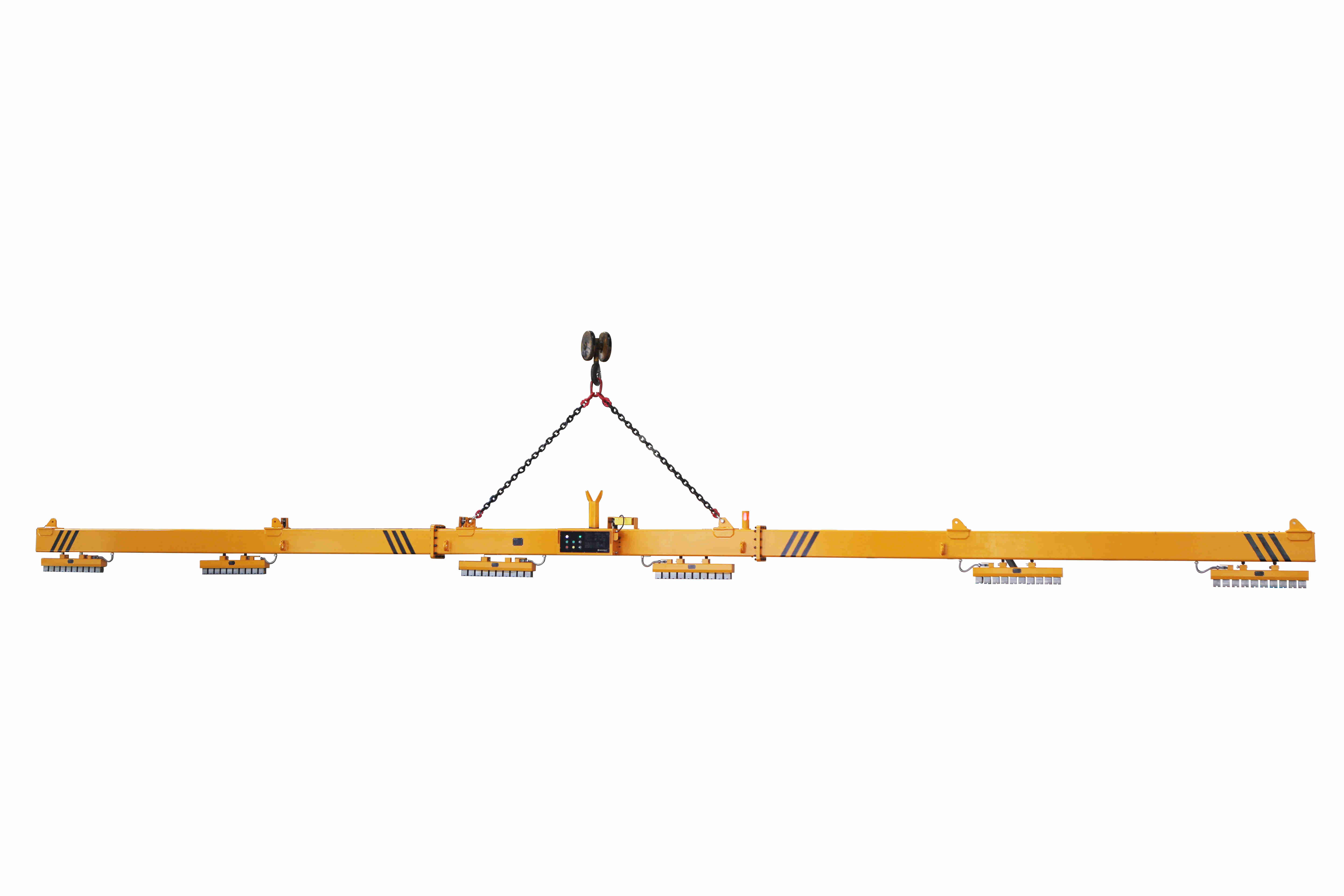

HS Series Lifting Magnets for Profiles

Lifting magnets specifically manufactured for handling of steel profiles, h beam blanks and angle iron.

Electro permanent magnet modules with slim pole shoes for lifting profiles from 80-600 mm in lengths up to 24,000 mm

OPTIONAL: for profiles from 600 mm - 1000 mm, the modules are turnable over 90°.

Electronic control unit on board with selection option of the magnetic modules, depending on the length of the profile to be lifted.

Control via the built-in digital push buttons or via the standard supplied radio remote control.

For uses in places where power supply is restricted/limited, we recommend battery powered lifting magnets for steel profiles.

Electro permanent magnetic technology independent of the electric current = 100% safe.
Safety Factor 3:1
An inductive proximity switch mounted on the lifting mechanism prevents accidental demagnetization in the air.
Integrated "PICK-UP" Cycle at lower Force (4 levels) for picking up thin steel plates, followed by FULLMAG.
Digital illuminated push buttons for easy and clear operation.
Simultaneous 2-button operation to demagnetize.
Lamp block for indication of the status of the magnet.
Radio remote control which prevents the operator from getting close to the load.
Advantages of an electrical versus hydraulic telescopic system.

Art No.	Series Code	Length(mm/in)		Width(mm/in)		Dead Weight(kg/Lbs)	Capacity(kg/Lbs)
Art No.	Series Code	Min.	Max.	Min.	Max.	Dead Weight(kg/Lbs)	Capacity(kg/Lbs)
HS-06-013	HS-013B0102-1	570/22.4	6000/236	80/3.1	160/6.3	500/1100	1300/2860
HS-12-026	HS-026B0104-1	1580/62.2	12000/472	80/3.1	160/6.3	900/1980	2600/5720
HS-18-039	HS-039B0106-1	1000/39.3	18000/709	80/3.1	160/6.3	1400/3080	3900/8580
HS-24-052	HS-052B0106-1	1000/39.3	24000/945	80/3.1	160/6.3	2100/4620	5200/11440
