Lifting electromagnet can generate a magnetic flux that penetrates deeply within the load, and holds it firmly. And that feature is required in the handling of hot rolled high speed steel wire rods and steel bundles like rebars, steel tubes, pipes.
HVR MAG can custom design and manufacture lifting electromagnet to handle high speed steel wire rods and bundled rebars in steel industry.
Lifting Electromagnet for Junkyard Steel Scrap Handling
MW5 Series Room Temperature Type
|
Model
|
Cold-State Power (kw) |
Current (A)
|
Overall Dimension (mm)
|
Weight (kg) |
Lifting Capacity (kg) (cold/hot state) |
||||||
|
(cold/hot state)
|
A
|
C
|
F
|
E
|
G
|
Steel ball
|
Casting ingot
|
Turnings
|
|||
|
HVR5-50L/1
|
2.6
|
11.8/7.7
|
500
|
700
|
160
|
90
|
25
|
220
|
1200
|
220/130
|
80/65
|
|
HVR5-60L/1
|
3.0
|
13.6/8.9
|
600
|
700
|
160
|
90
|
25
|
340
|
2000
|
290/170
|
95/80
|
|
HVR5-70L/1
|
3.3
|
15/9.8
|
700
|
800
|
160
|
90
|
30
|
490
|
2500
|
380/200
|
120/100
|
|
HVR5-80L/1
|
4.0
|
18/12
|
800
|
800
|
160
|
90
|
30
|
620
|
3000
|
480/250
|
150/130
|
|
HVR5-90L/1
|
5.9
|
26.8/17.5
|
900
|
1090
|
200
|
120
|
40
|
800
|
4500
|
600/400
|
250/200
|
|
HVR5-110L/1
|
7.7
|
35/22.8
|
1100
|
1040
|
220
|
150
|
45
|
1350
|
6500
|
1000/800
|
450/400
|
|
HVR5-120L/1
|
10
|
45.5/29.5
|
1200
|
1100
|
220
|
150
|
45
|
1700
|
7500
|
1300/1000
|
650/500
|
|
HVR5-130L/1
|
12
|
54.5/35.5
|
1300
|
1240
|
250
|
175
|
50
|
2010
|
8500
|
1400/1100
|
700/600
|
|
HVR5-150L/1
|
15.6
|
70.9/46.1
|
1500
|
1250
|
350
|
210
|
60
|
2830
|
11000
|
1900/1500
|
1100/900
|
|
HVR5-165L/1
|
16.5
|
75/48.8
|
1650
|
1590
|
370
|
230
|
75
|
3200
|
12500
|
2300/1800
|
1300/1100
|
|
HVR5-210L/1
|
28.4
|
129/84
|
2100
|
1860
|
400
|
250
|
80
|
7000
|
21000
|
3500/2800
|
2200/1850
|
|
HVR5-240L/1
|
33.9
|
154/100
|
2400
|
2020
|
450
|
280
|
90
|
9000
|
25000
|
4800/3800
|
2850/2250
|
|
HVR5-260L/1
|
35.6
|
162/105
|
2600
|
2100
|
450
|
280
|
90
|
10100
|
30000
|
6100/4900
|
3600/3850
|
|
HVR5-280L/1
|
39
|
178/116
|
2800
|
2700
|
500
|
300
|
100
|
12450
|
34000
|
7100/5700
|
4450/3400
|
|
HVR5-300L/1
|
41.5
|
189/123
|
3000
|
2300
|
500
|
300
|
100
|
14980
|
3900
|
8350/6700
|
5250/4100
|
NW5 Series High Frequency Type
|
Model
|
Cold-State Power (kw) |
Current (A)
|
Overall Dimension (mm)
|
Weight (kg) |
Lifting Capacity (kg) (cold/hot state) |
||||||
|
(cold/hot state)
|
A
|
C
|
F
|
E
|
G
|
Steel ball
|
Casting ingot
|
Turnings
|
|||
|
HVR5-50L/1-75
|
2.0 | 9.1/6 | 500 | 700 | 160 | 90 | 25 | 253 | 1200 | 220/130 | 80/65 |
|
HVR5-60L/1-75
|
2.32 | 10.5/6.8 | 600 | 750 | 160 | 90 | 25 | 390 | 2000 | 290/170 | 95/80 |
|
HVR5-70L/1-75
|
2.55 | 12.7/8.3 | 700 | 800 | 160 | 90 | 30 | 550 | 2500 | 380/220 | 120/100 |
|
HVR5-80L/1-75
|
3.1 | 16.1/10.5 | 800 | 850 | 160 | 90 | 30 | 690 | 3000 | 480/250 | 150/130 |
|
HVR5-90L/1-75
|
4.6 | 20.5/13.3 | 900 | 1160 | 200 | 125 | 40 | 885 | 4500 | 600/400 | 250/200 |
|
HVR5-110L/1-75
|
6.1 | 27.3/17.7 | 1100 | 1270 | 220 | 150 | 45 | 1500 | 6500 | 1000/800 | 450/400 |
|
HVR5-120L/1-75
|
7.4 | 33.6/21.9 | 1200 | 1220 | 220 | 150 | 45 | 1850 | 7500 | 1300/1000 | 600/500 |
|
HVR5-130L/1-75
|
8.9 | 40.5/26.3 | 1300 | 1290 | 250 | 175 | 50 | 2280 | 8500 | 1400/1100 | 700/600 |
|
HVR5-150L/1-75
|
11.3 | 51.4/33.4 | 1500 | 1360 | 350 | 210 | 60 | 3180 | 11000 | 1900/1500 | 1100/900 |
|
HVR5-165L/1-75
|
12.2 | 60.5/39.3 | 1650 | 1670 | 370 | 230 | 75 | 3840 | 12500 | 2300/1800 | 1300/1100 |
|
HVR5-180L/1-75
|
16.3 | 95/61.8 | 1800 | 1800 | 370 | 230 | 75 | 4690 | 14500 | 2750/2100 | 1600/1350 |
|
HVR5-210L/1-75
|
21.7 | 104.1/67.7 | 2100 | 1900 | 400 | 250 | 80 | 7500 | 21000 | 3500/2800 | 2200/1850 |
|
HVR5-240L/1-75
|
25.9 | 118.2/76.8 | 2400 | 2100 | 450 | 280 | 90 | 9800 | 26000 | 4800/3800 | 2850/2250 |
|
HVR5-260L/1-75
|
27.5 | 125/83 | 2600 | 2150 | 450 | 280 | 90 | 11000 | 30000 | 6100/4900 | 3600/2850 |
|
HVR5-280L/1-75
|
30.5 | 136/89 | 2800 | 2200 | 500 | 300 | 100 | 13600 | 34000 | 7100/5700 | 4450/3400 |
|
HVR5-300L/1-75
|
32.5 | 146/95 | 3000 | 2350 | 500 | 300 | 100 | 16500 | 39000 | 8350/6700 | 5250/4100 |
NW5 Series High Temperature Type
|
Model
|
Cold-State Power (kw) |
Current (A)
|
Overall Dimension (mm)
|
Weight (kg) |
Lifting Capacity (kg) (cold/hot state) |
||||||
|
(cold/hot state)
|
A
|
C
|
F
|
E
|
G
|
Steel ball
|
Casting ingot
|
Turnings
|
|||
|
HVR5-50L/2
|
2.0 | 9.1/6 | 500 | 700 | 160 | 90 | 25 | 220 | 1200 | 220/130 | 80/65 |
|
HVR5-60L/2
|
2.3 | 10.5/6.8 | 600 | 750 | 160 | 90 | 25 | 395 | 2000 | 290/170 | 95/80 |
|
HVR5-70L/2
|
2.8 | 12.7/8.3 | 700 | 800 | 160 | 90 | 30 | 520 | 2500 | 380/200 | 120/100 |
|
HVR5-80L/2
|
3.54 | 16.1/10.5 | 800 | 850 | 160 | 90 | 30 | 650 | 3000 | 400/250 | 150/130 |
|
HVR5-90L/2
|
4.5 | 20.5/13.3 | 900 | 1160 | 200 | 125 | 40 | 900 | 4500 | 600/400 | 250/200 |
|
HVR5-110L/2
|
6 | 27.3/17.7 | 1100 | 1270 | 220 | 150 | 45 | 1500 | 6500 | 1000/800 | 450/400 |
|
HVR5-120L/2
|
7.4 | 33.6/21.9 | 1200 | 1220 | 220 | 150 | 45 | 1800 | 7500 | 1300/1000 | 600/500 |
|
HVR5-130L/2
|
8.9 | 40.5/26.3 | 1300 | 1290 | 250 | 175 | 50 | 2100 | 8500 | 1400/1100 | 700/600 |
|
HVR5-150L/2
|
11.3 | 51.4/33.4 | 1500 | 1360 | 350 | 210 | 60 | 3200 | 11000 | 1900/1500 | 1100/900 |
|
HVR5-165L/2
|
13.3 | 60.5/39.3 | 1650 | 1670 | 370 | 230 | 75 | 3500 | 12500 | 2300/1800 | 1300/1100 |
|
HVR5-180L/2
|
20.9 | 95/61.8 | 1800 | 1800 | 370 | 230 | 75 | 4500 | 14500 | 2750/2100 | 1600/1350 |
|
HVR5-210L/2
|
22.9 | 104.1/67.7 | 2100 | 1900 | 400 | 250 | 80 | 7500 | 21000 | 3500/2800 | 2200/1850 |
|
HVR5-240L/2
|
26 | 118.2/76.8 | 2400 | 2100 | 450 | 280 | 90 | 9800 | 26000 | 4800/3800 | 2850/2250 |
|
HVR5-260L/2
|
27.5 | 125/83 | 2600 | 2150 | 450 | 280 | 90 | 11000 | 30000 | 6100/4900 | 3600/2850 |
|
HVR5-280L/2
|
30 | 136/89 | 2800 | 2200 | 500 | 300 | 100 | 13700 | 34000 | 7100/5700 | 4450/3400 |
|
HVR5-300L/2
|
32 | 146/95 | 3000 | 2350 | 500 | 300 | 100 | 16480 | 39000 | 8350/6700 | 5250/4100 |
NW5 Series Strong Magnetism Type
|
Model
|
Voltage (V)
|
Cold-State Power (kw) |
Current (A) (cold/hot state) |
Lifting Capacity (kg) (cold/hot state) |
Overall Dimension (mm)
|
Weight (kg) |
||||||
|
Steel ball
|
Casting ingot
|
Turnings
|
A
|
C
|
F
|
E
|
G
|
|||||
|
HVR5-165L/1-QC
|
400/200
|
17.6
|
80/52
|
13500
|
2650/2100
|
1500/1300
|
1650
|
1730
|
370
|
230
|
75
|
4250
|
|
HVR5-180L/1-QC
|
400/200
|
22.8
|
104/67.4
|
1600
|
3100/2400
|
1900/1600
|
1800
|
1870
|
370
|
230
|
75
|
5600
|
|
HVR5-210L/1-QC
|
400/200
|
32.6
|
148/96
|
23100
|
4000/3200
|
2600/2180
|
2100
|
1980
|
400
|
250
|
80
|
8300
|
|
HVR5-240L/1-QC
|
400/200
|
43
|
195/127
|
28600
|
5500/4400
|
3360/2650
|
2400
|
2200
|
450
|
280
|
90
|
10800
|
Advantages of Electric Lifting Magnet:
✦Large depth of magnetic field
✦Rapid activation and deactivation
✦Checks the state of loading at each cycle and automatic charging of the batteries
✦Magnetic field intensity regulator depending on the load.
As a professional lifting magnet manufacturer, HVR MAG can provide electromagnetic lifting system specifically designed ...
Electromagnetic lifting system specifically designed to load & unload high speed steel wire rods...

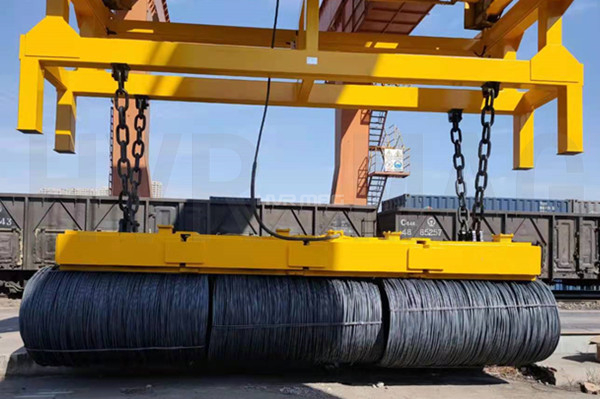

● Steel Wire Rods Lift Magnet - handling high speed wire rods of different sizes and weights, custom-made.

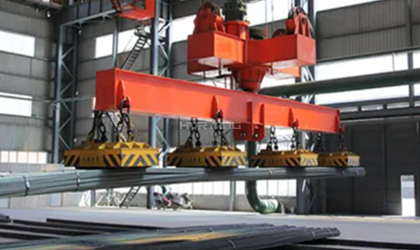

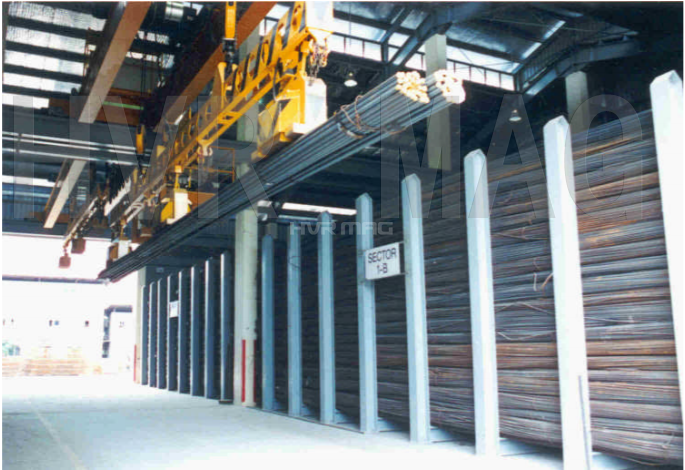

● Bunded Rebar Lift Magnet - ideal for handling of rebar bundles or construction steel, from tie work area to storage yard or directly onto the truck platform. HVR MAG accepts customization request to fit all bundled steel operations.
Work directly with our experienced team to solve your toughest engineering challenges
