Horizontal To Vertical Plate Lifting: All in One Magnetic Lifter

A metal fabrication plant specializing in large steel components faced constant bottlenecks in their cutting department. Their vertical plate storage system required workers to manually reposition plates between horizontal transport and vertical storage - a physically demanding process that slowed operations and raised safety concerns. The existing lifting equipment could only handle plates in one orientation, forcing workers to use risky manual methods for position changes.

Smart Lifting Solution

We developed a specialized electro permanent lifting magnet that solves this dual-orientation challenge. The system's innovative design allows seamless switching between horizontal lifting for transportation and vertical lifting for storage. Operators control the transition with a simple button press on the wireless remote, eliminating dangerous manual handling. The magnet maintains full holding power throughout the entire position change process.

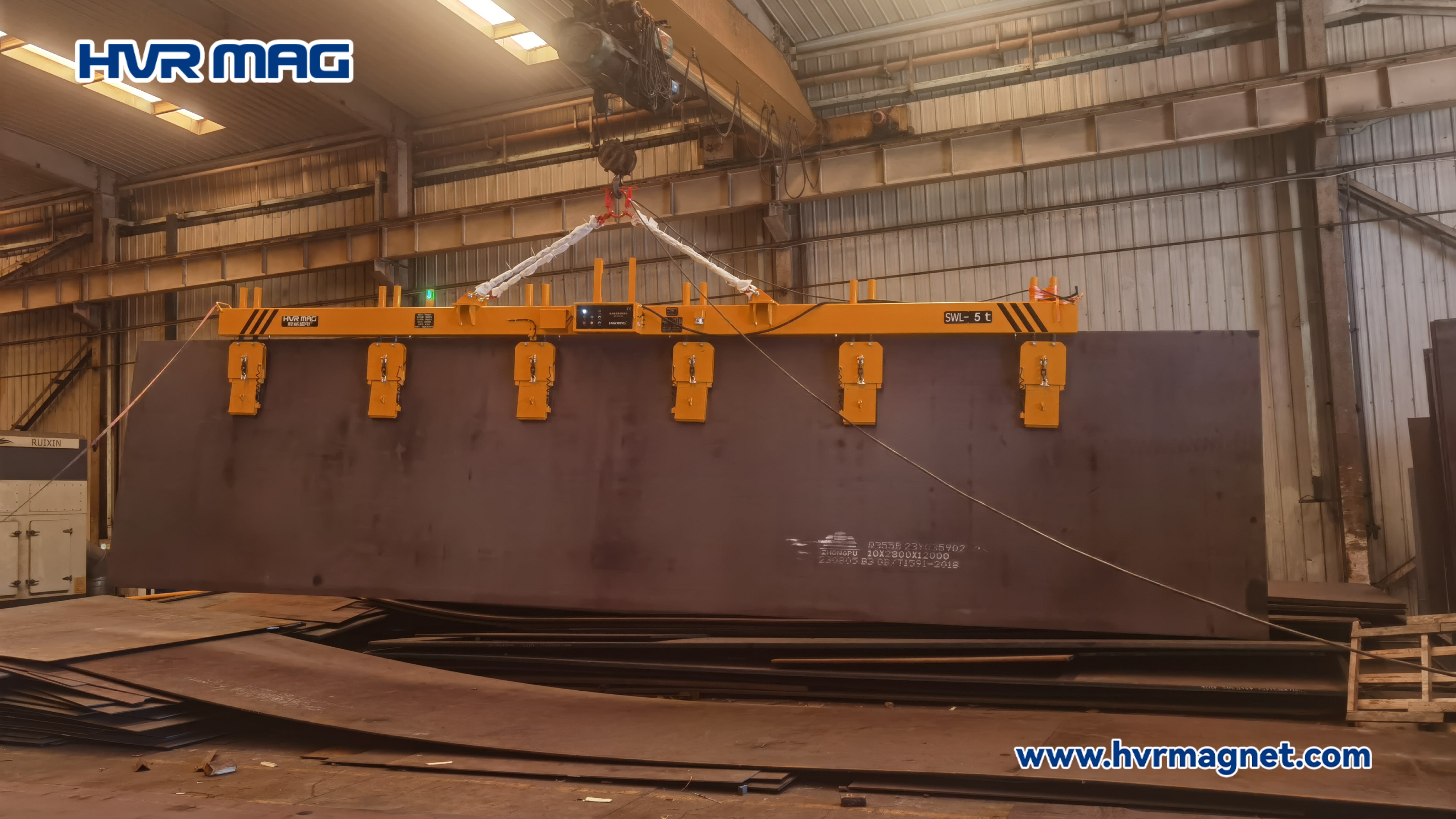

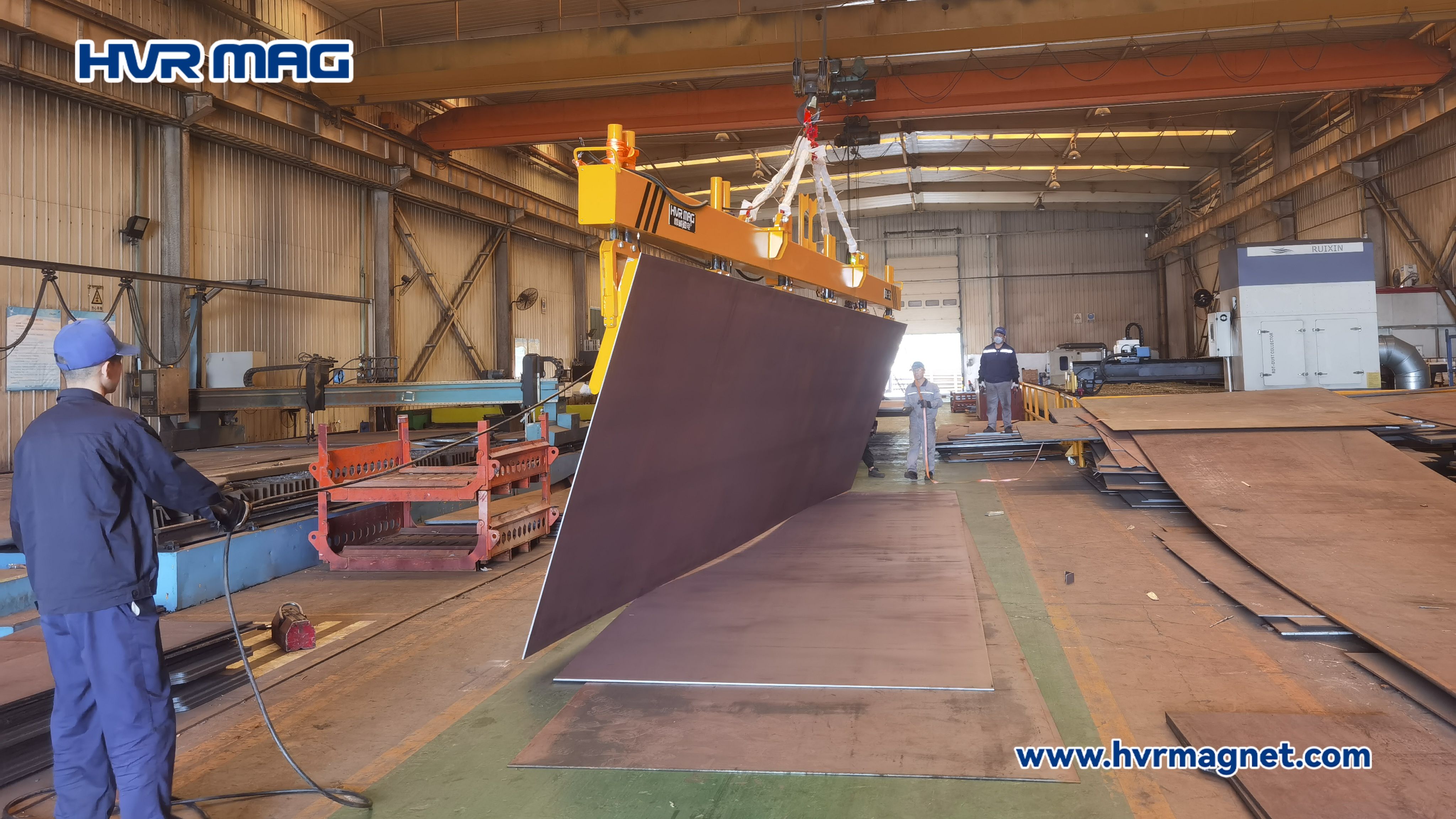

Now when a plate arrives at the cutting area, a single operator can effortlessly move it through the entire workflow. The magnet first lifts the plate horizontally from the delivery cart, then smoothly transitions to vertical position for storage in the compact racking system. When needed for cutting, the process reverses just as easily. This fluid motion happens in one continuous operation, with no need for intermediate staging or manual intervention.

Since implementation, the fabrication plant has seen remarkable gains. Plate handling time between storage and cutting stations has been reduced by 65%, significantly increasing machine utilization. The elimination of manual repositioning has removed a major source of workplace injuries in the department. Operators report much less physical strain at the end of their shifts, as they no longer need to wrestle with heavy plates during orientation changes.

This successful implementation demonstrates how advanced lifting technology can optimize space-constrained manufacturing environments. The fabrication plant is now exploring additional applications for the dual-position system in other areas of their operation. As more industries adopt vertical storage solutions to maximize floor space, this case study proves that intelligent material handling equipment can bridge the gap between horizontal transport and vertical storage needs.
