How do you lift steel plates of varying lengths, without changing the lifting equipment? Magnetic solution provider recommends a type of steel plate lifting clamp that can manage to do that, which also can prevent bend, deflection and scratches of plates.

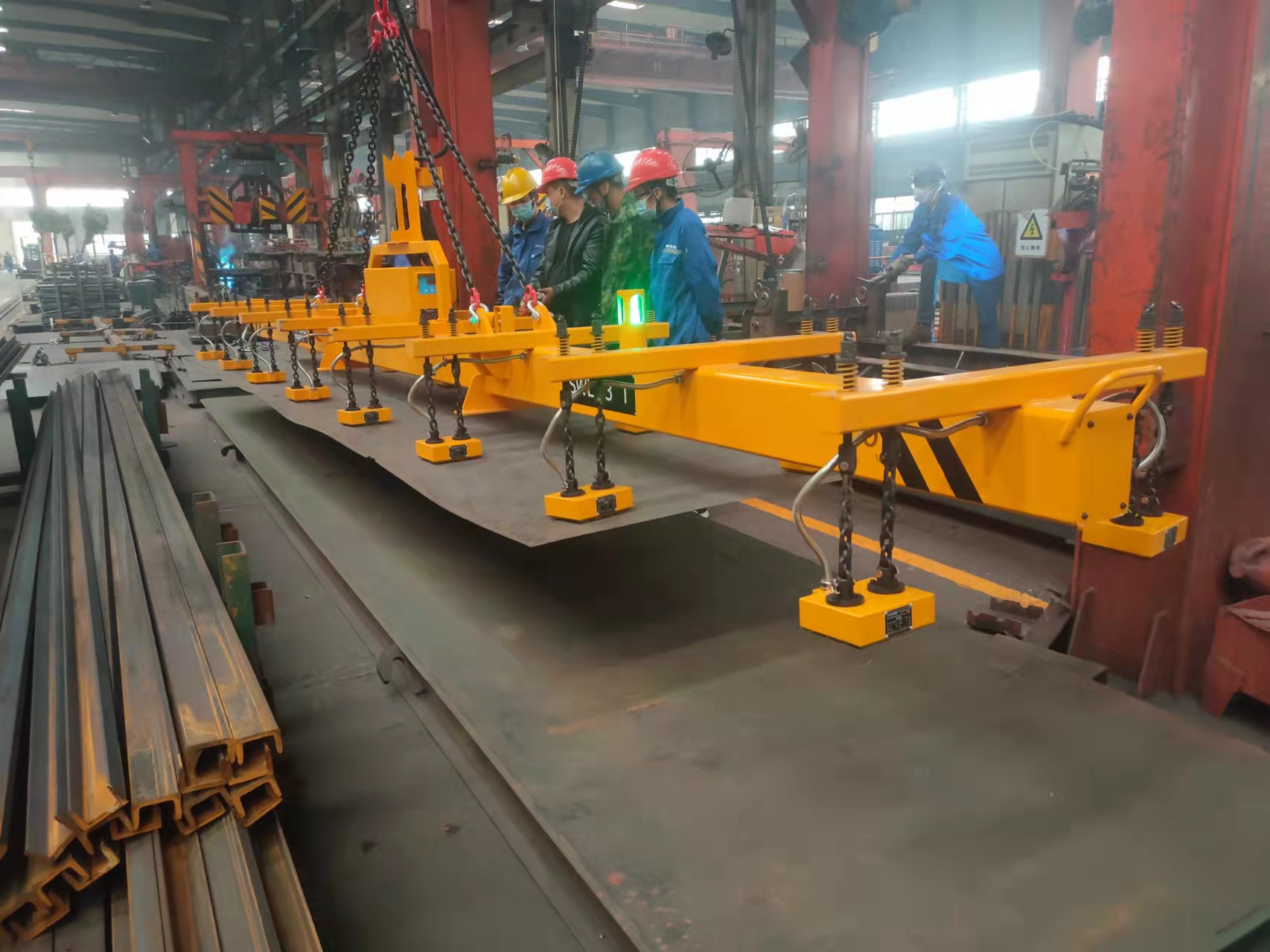

Shown in the picture, is the magnetic type of steel plate lifting clamp, which utilizes magnetic force to clamp on the plate. The rated lifting capacity is 3 ton, which means lifting steel load within that weight limit is guaranteed with superior safety.
In other terms, this type of magnetic steel plate lifting clamp is also referred to as magnetic lifting equipment, or magnetic lifting beam. Couple of magnet lifters on a spreader beam, which form a multi point lifting device for long steel plates. Like the above mentioned, it utilizes 8 groups of magnet lifter symmetrically distributed on each side of the beam.
What’s so special about magnetic lifting for steel plates?
- Horizontal steel plate lifting clamp, while other plate clamps fail to do:
- Uniform magnetic clamping force on the plate to prevent scratches
- Spares the need of manual separation of sheet
- Magnet lifters distributed on multi points to lift , preventing bend/deflection of sheet
- Safety guaranteed – no dropping of plate even in a sudden power failure
- Remote controlled lifting and releasing of plate, requires only one operator
More flexible lifting solutions for steel plates of different thickness and lengths, because:
- You can select different groups of magnetic lifters to handle steel plates according to their length
- Magnetic force can be adjusted, 4 gears, to ensure lifting only one plate each time
Double insurance on safety – landing detection device: the plate will not be released unless it lands on the floor successfully. This is to prevent accidental demagnetization due to faulty operation.
Focusing on lifting safety and handling efficiency, our steel plate lifting clamp is customizable for each application to help manage heavy steel items safely and easily. Welcome to visit our website www.hvrmagnet.com to discover more types of steel plate lifting equipment, including the vertical (tilt lifting) type.
