How to lift steel round bar safely and quickly, and efficiently? Lifting magnet manufacturer HVR MAG, will show you how magnetic lift can help you achieve that.
Let’s take a look at the following application cases of magnetic lifters manufactured by HVR MAG in different industries.

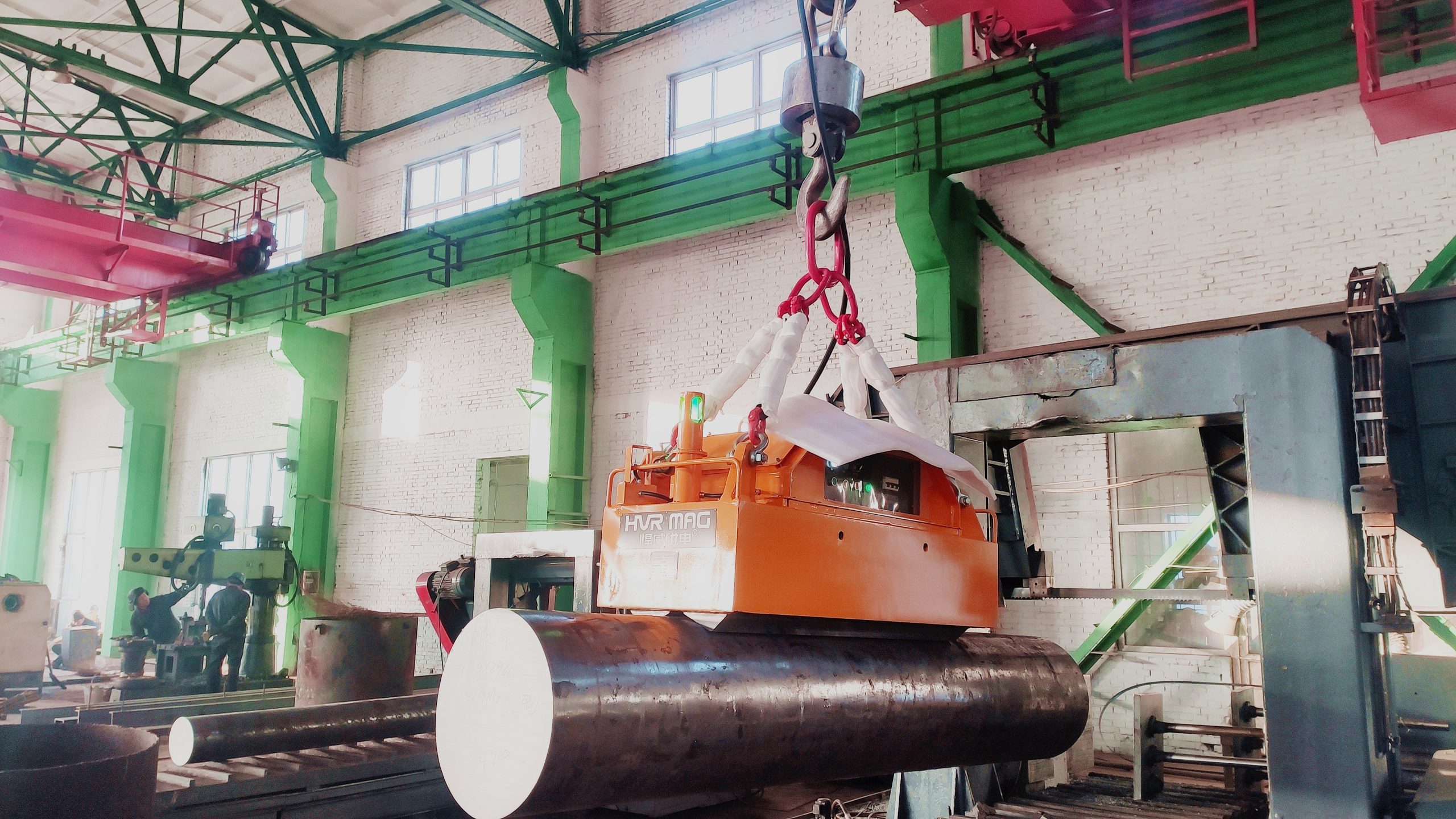

Scenario 1
Lifting outdoor round bar stocks in a logistics company
Bar specifications:
- Diameter: φ100-550mm
- Maximum weight: 10 ton
Handling requirement:
- Loading & unloading 1 bar for cutting machine
- Loading & unloading 2-3 bars for truck
Lifting magnet manufacturer’s solution:
Customized remote controlled lift magnet, which can lift 2-3 bars one time depending on the diameter of bars.

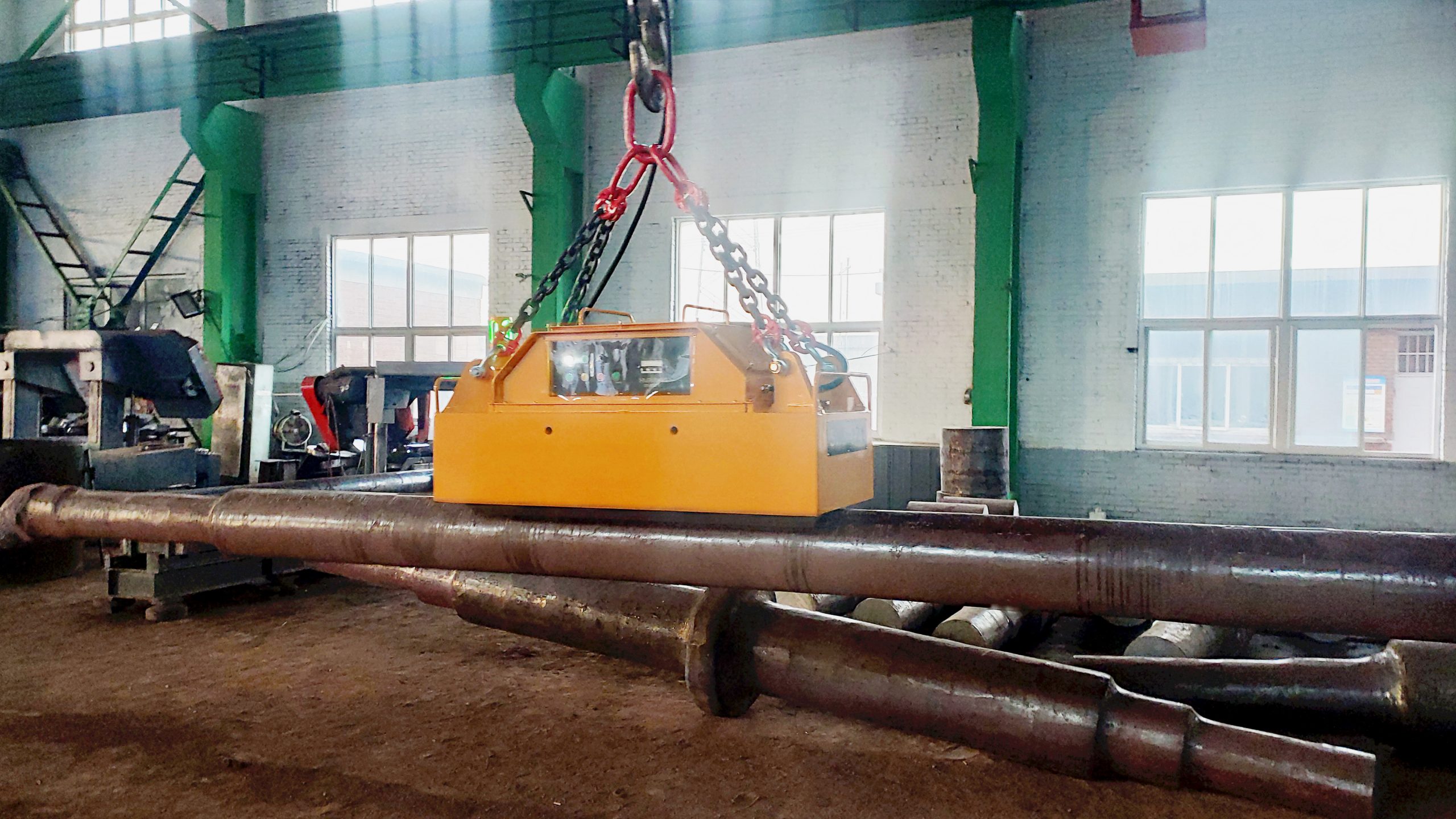

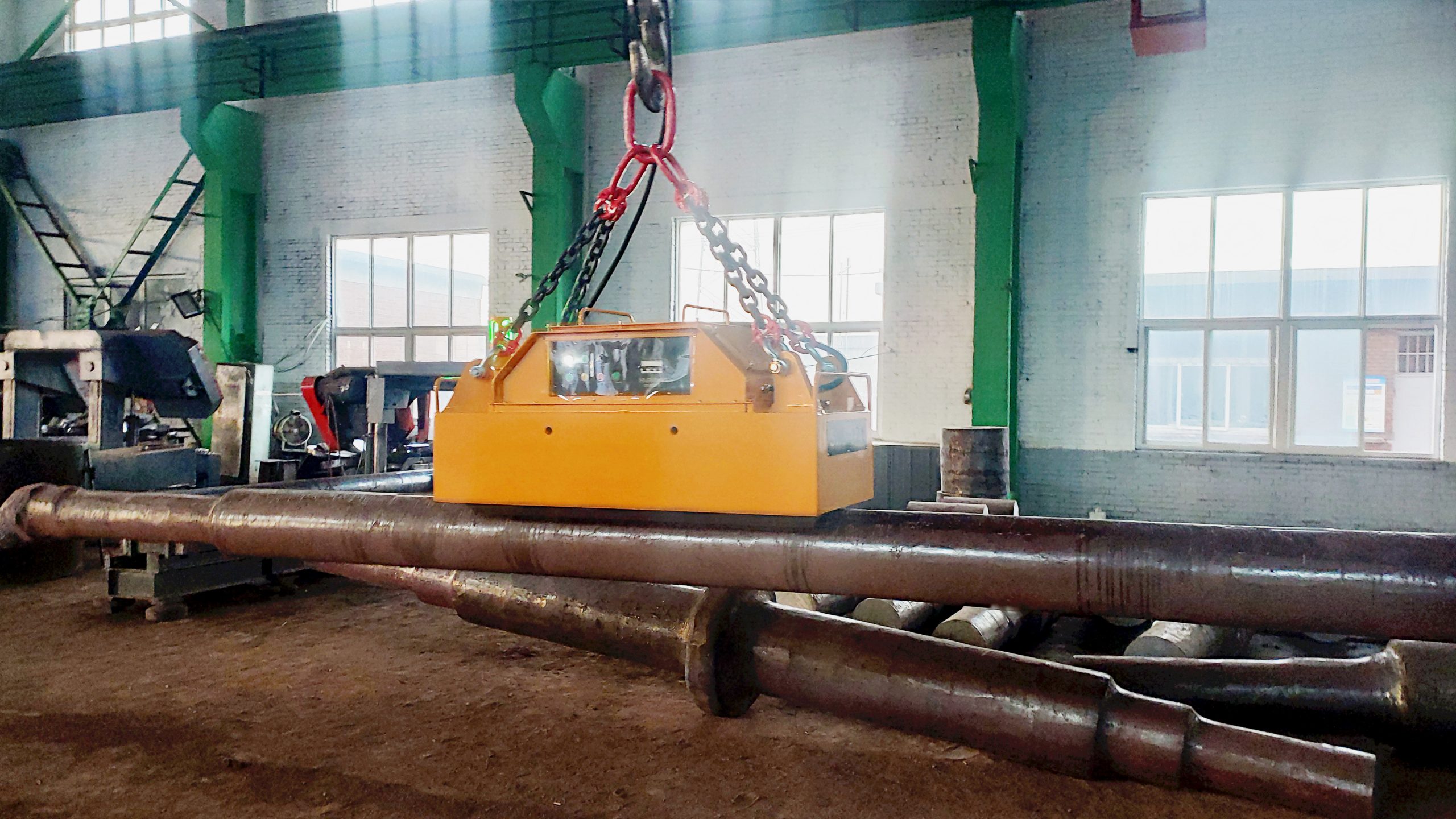

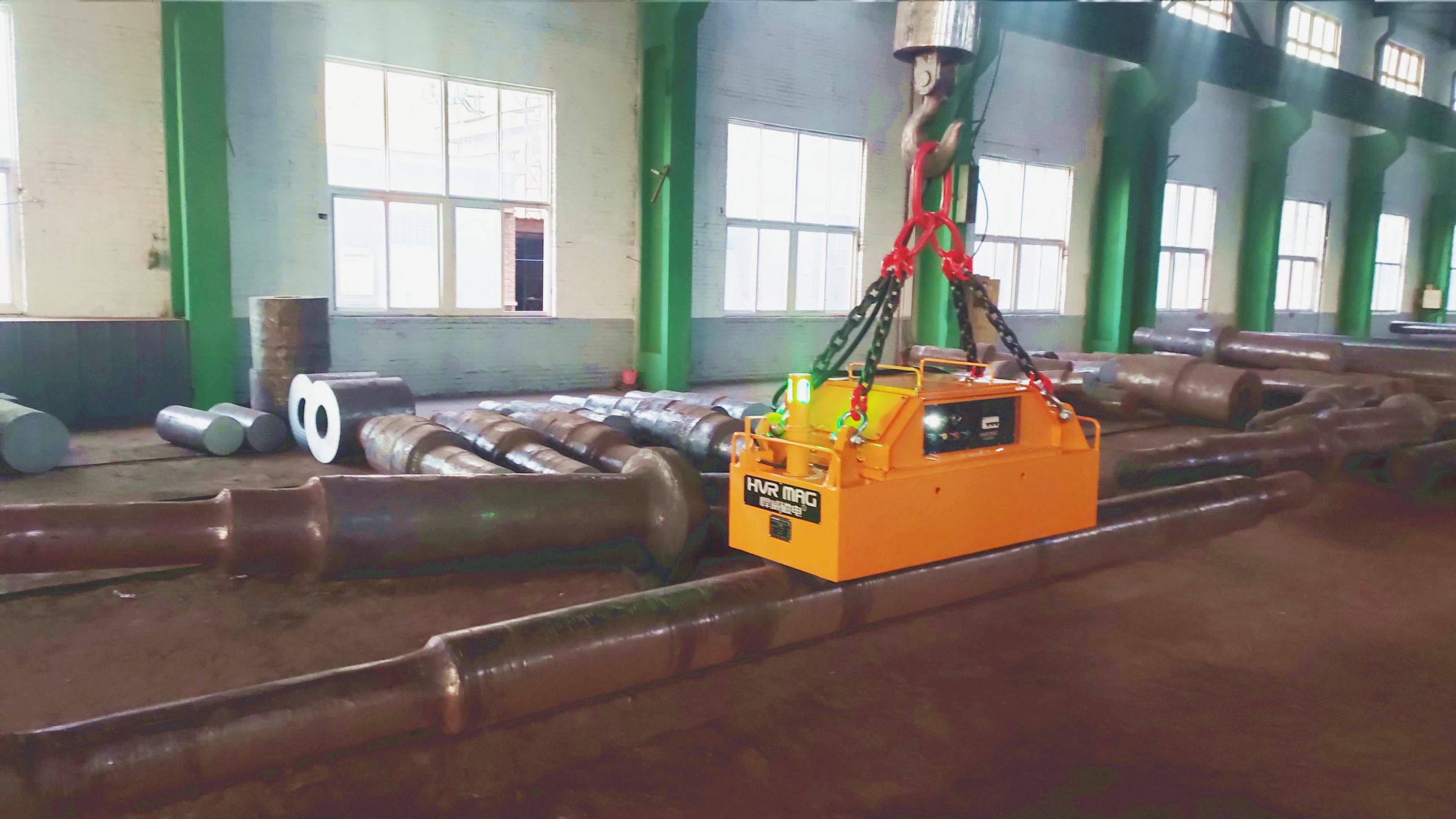

Scenario 2
Trial lift of steel bars and rods of varying diameters and weights. The intended application was to load and unload bars and rods for truck.
Specifications of the steel bars and rods to be lifted:
- Length: 2000mm-8000mm;
- Diameter:φ300mm -φ500mm
- Maximum weight: 12 ton
Lifting magnet manufacturer’s solution:
Specifically designed and manufactured electrically switched permanent magnetic lifter, with remote control.
Click to see the lifting video:
Features of These Above Mentioned Lift Magnets:
- Specifically designed magnetic gripping surface with a groove in the middle, to fit for the protruded surface of rod.
- Remote controlled, one operator can manage the whole lifting process.
- Consumes no power during the lift; only uses electricity in magnetization and demagnetization phase.
- Can remain holding of the heavy round bar even if the power supply suddenly goes off.
About Lifting Magnet Manufacturer
In addition to steel round bars and rods, HVR MAG’s magnetic lifting technology is also ideal for steel tubes, pipes, profiles, plates, slabs, billets, etc., from 500kg to 40 tons, as long as the steel material is ferrous.
For long and heavy materials, we recommend the use of magnetic lifting beam, for either steel plates, profiles, tubes, etc.
For places where power supply is inconvenient or unavailable, battery powered lifting magnets are a good choice for your handling job.
Whatever the requirement is, get in touch with us, we can tailor magnetic lifting solutions for the maximum of your handling efficiency.
