Album of Applications of EOAT Tooling Magnet in Robotics

Album of Applications of EOAT Tooling Magnet in Robotics

In robotics, EOAT tooling magnet is also referred to as magnetic gripping head, mounted at the end of robotic system. You can gain a better understanding after going through the album of applications of magnet robot grippers, manufactured by HVR MAG.

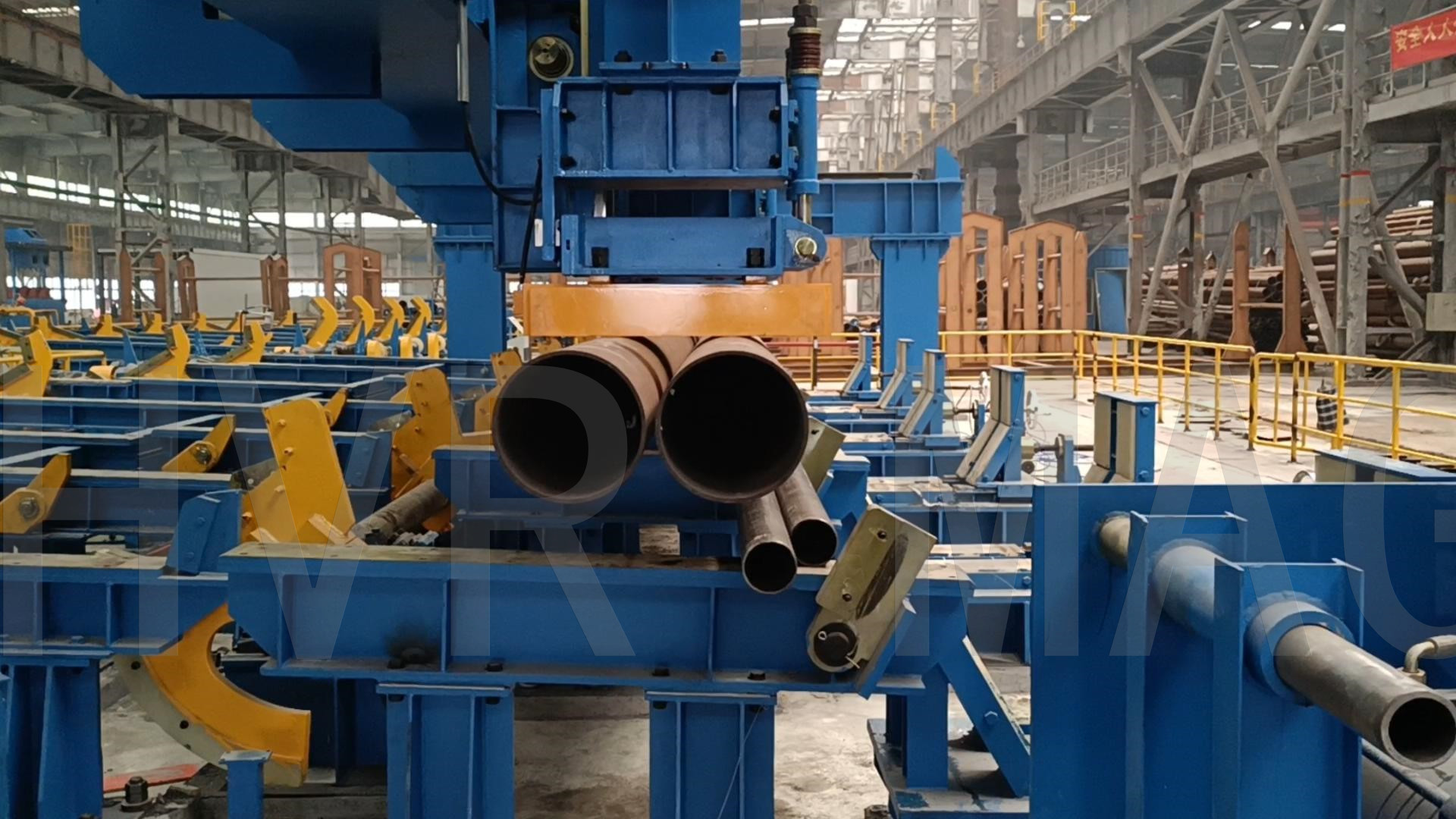

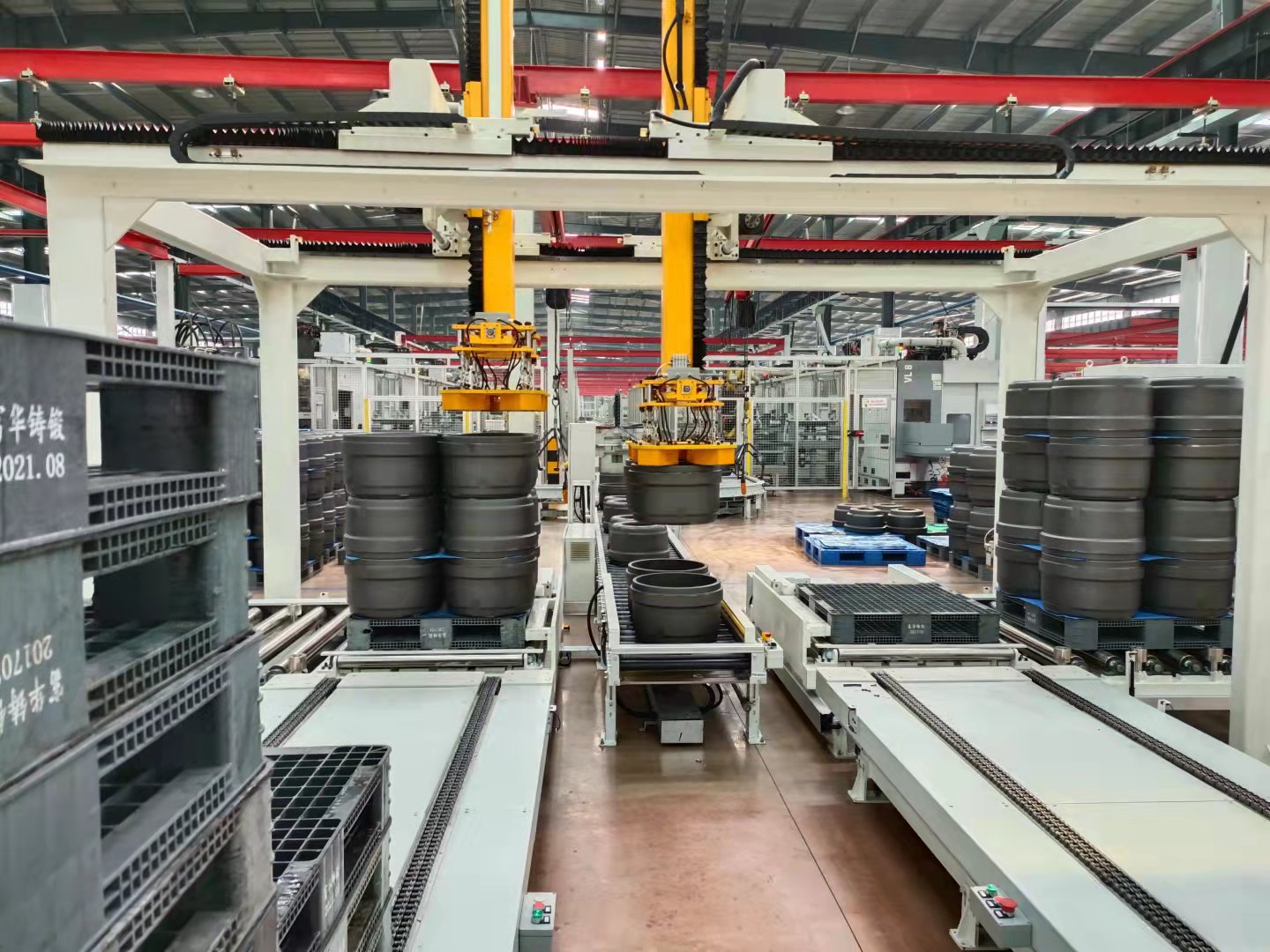

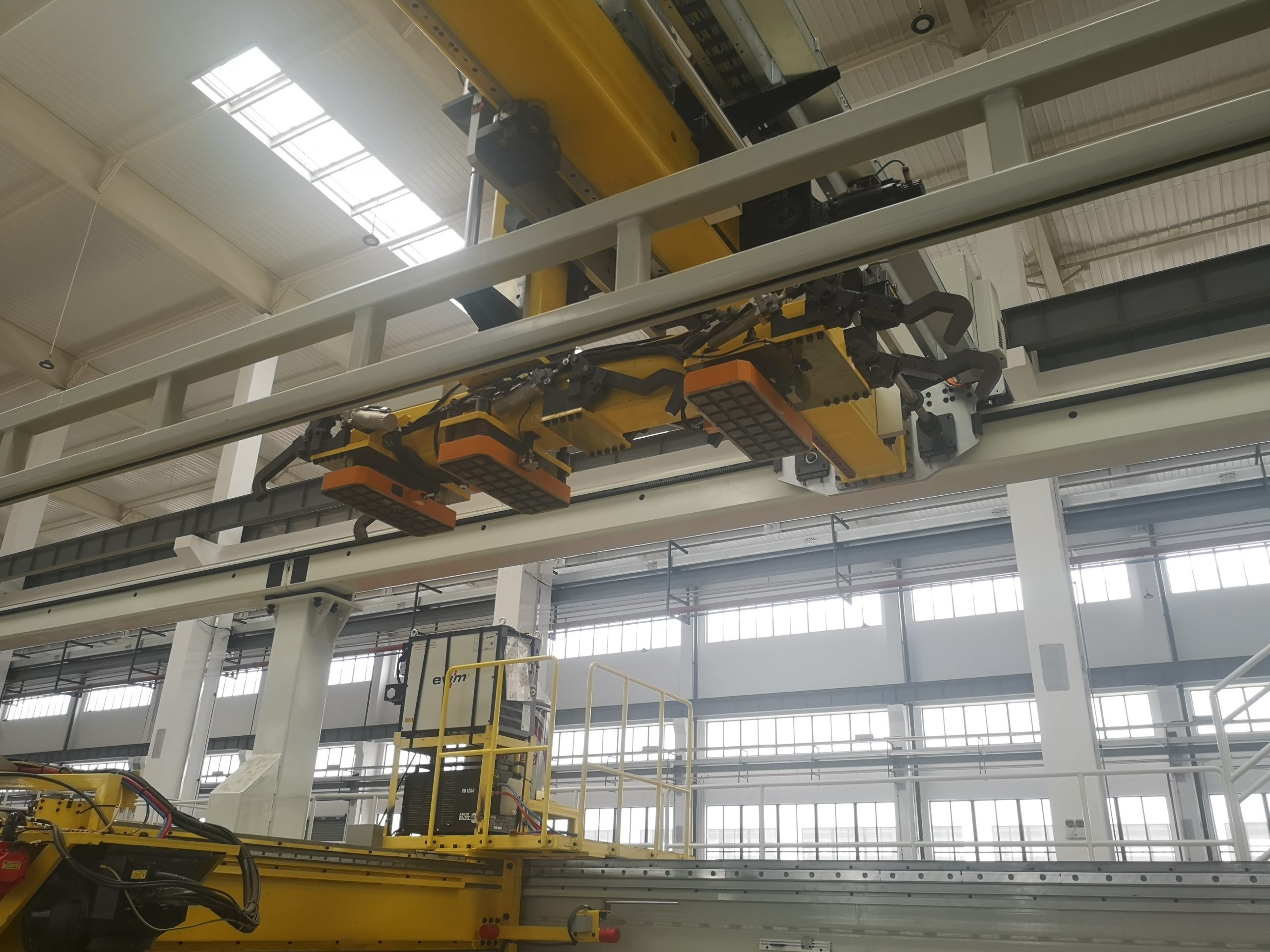

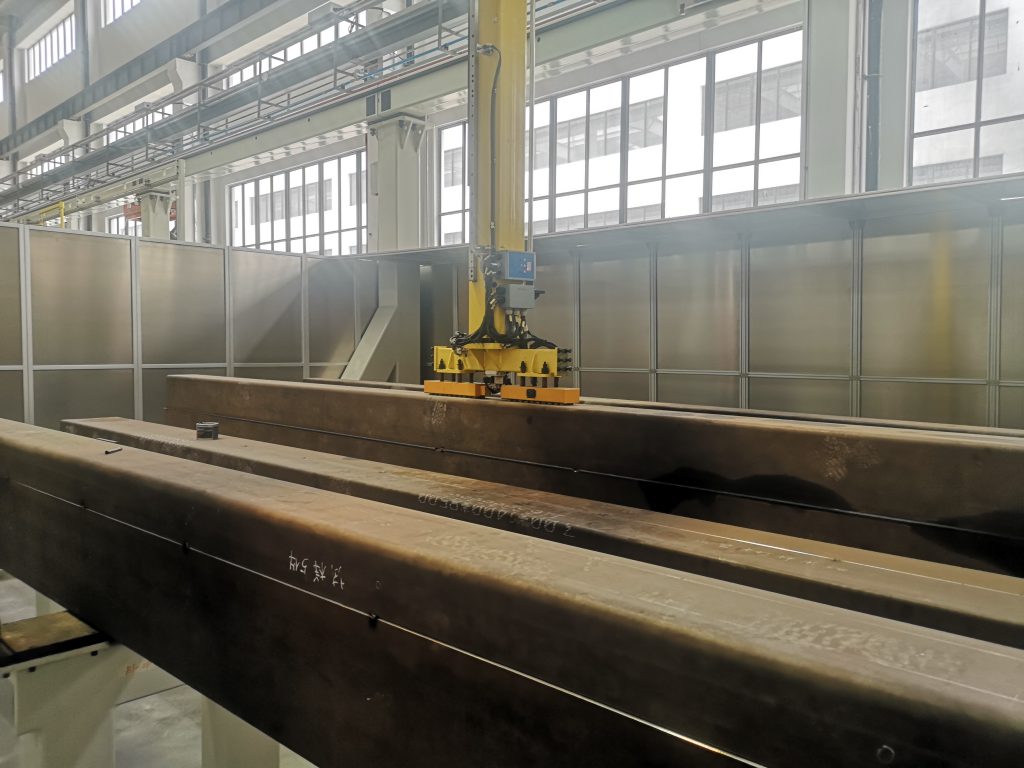

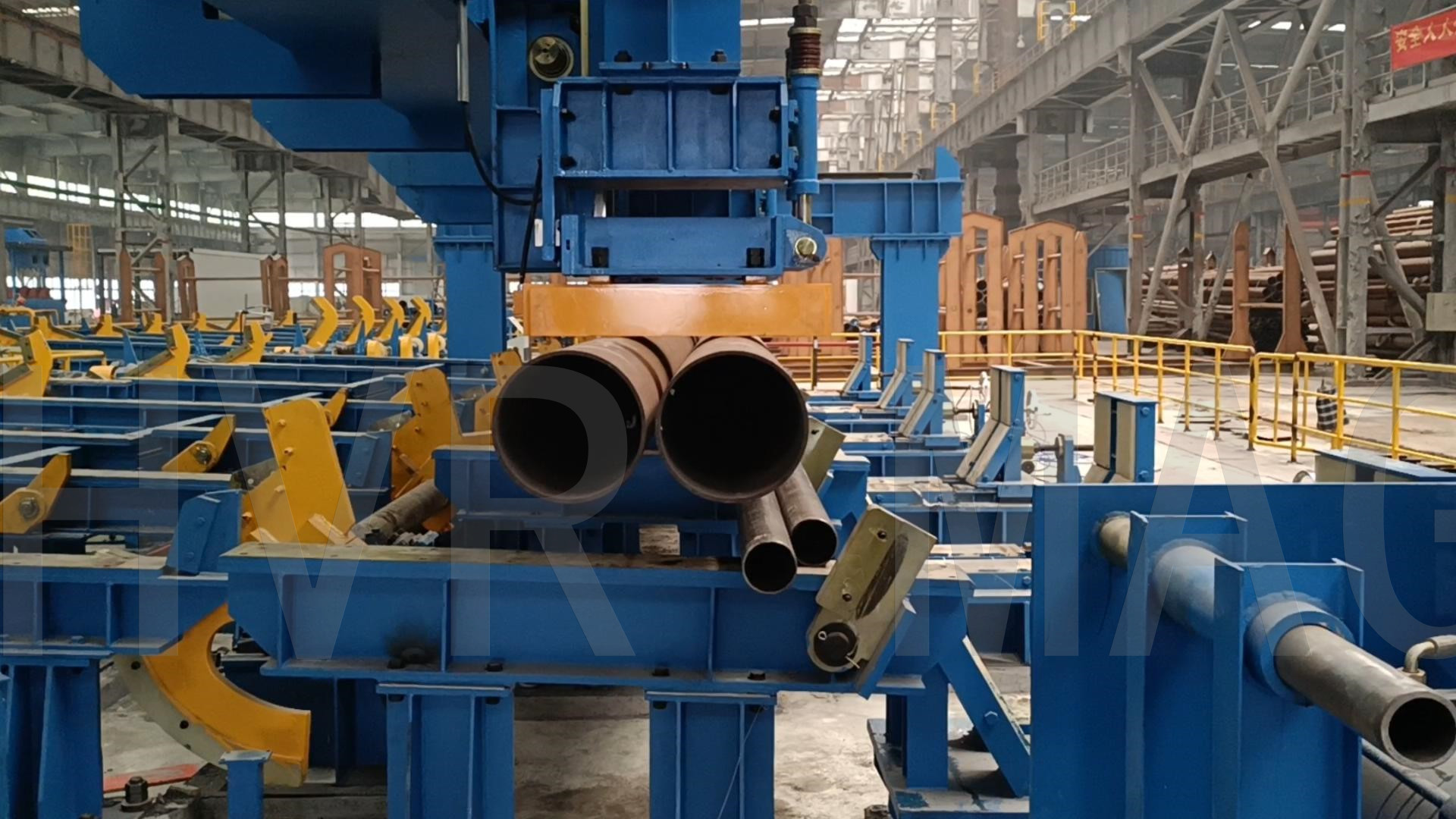

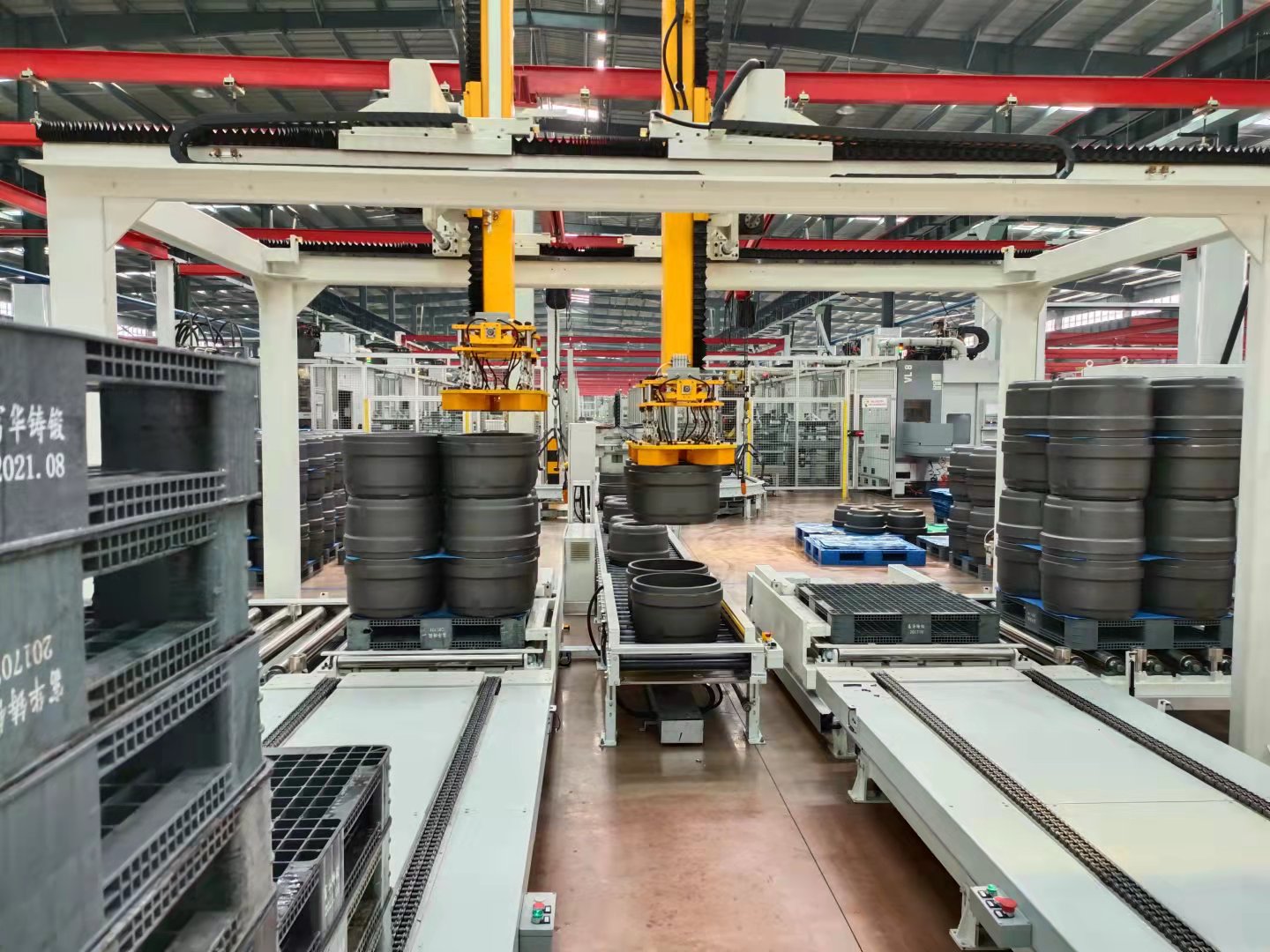

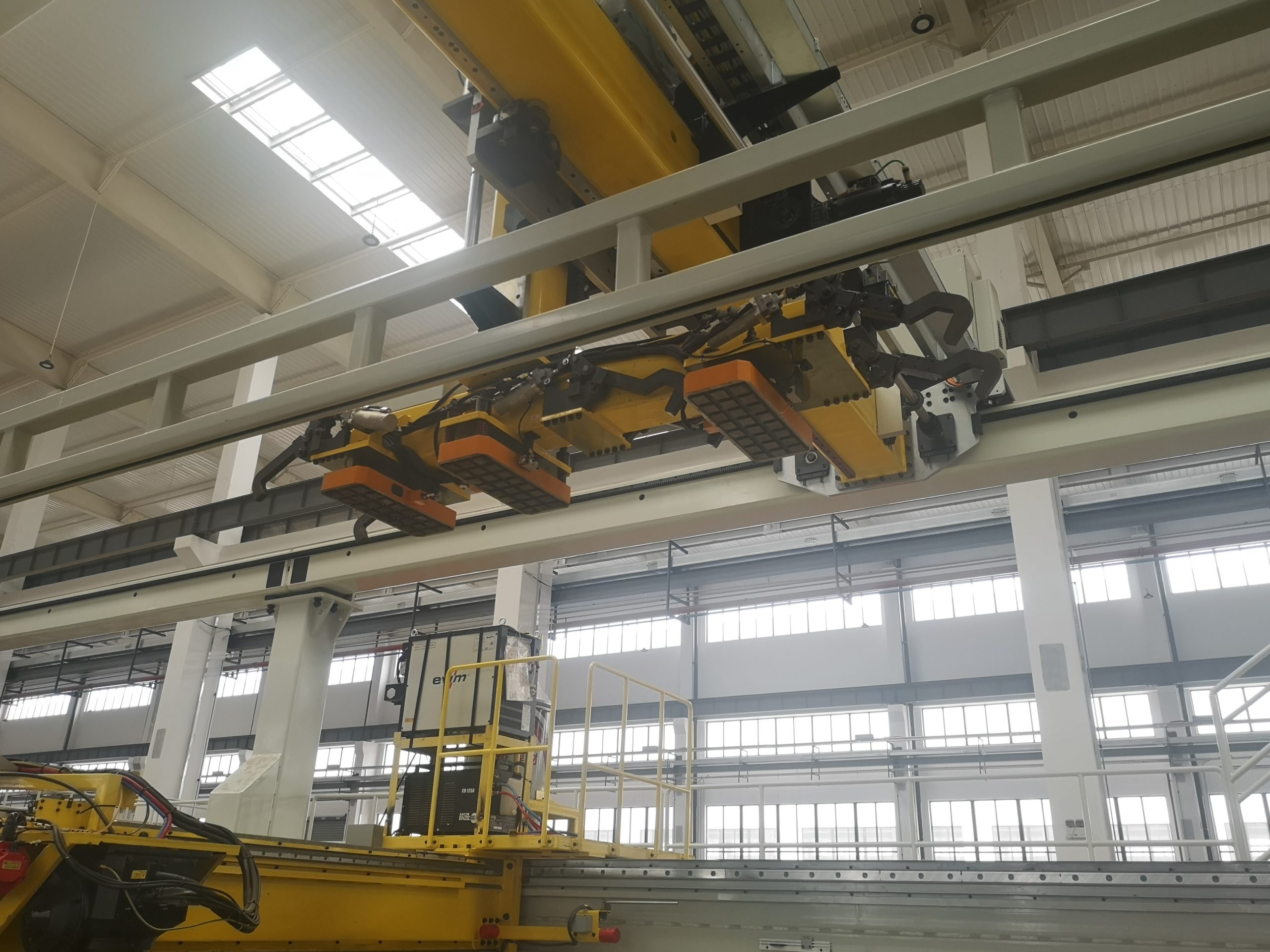

EOAT Tooling Magnet for Gantry Robot System

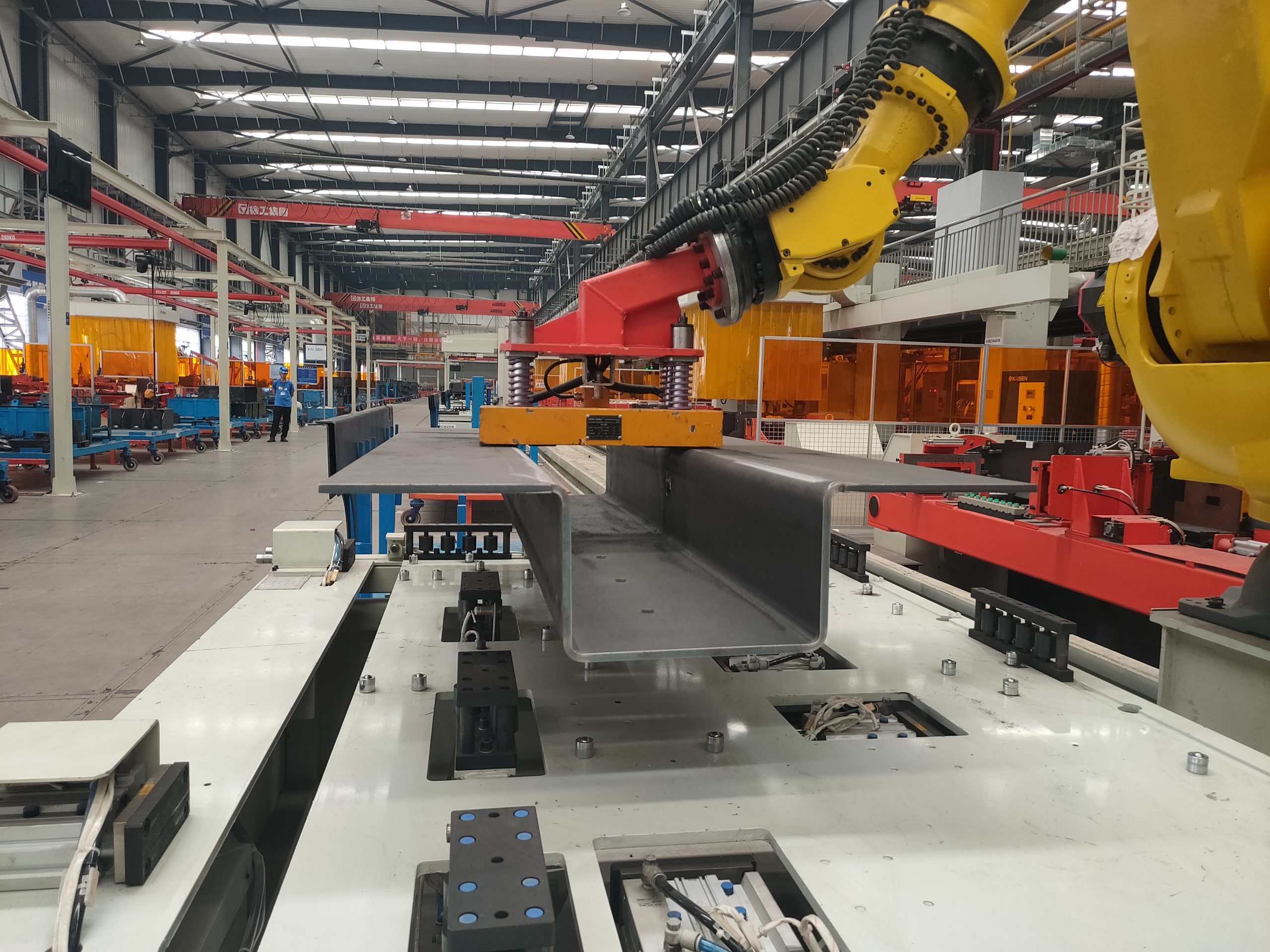

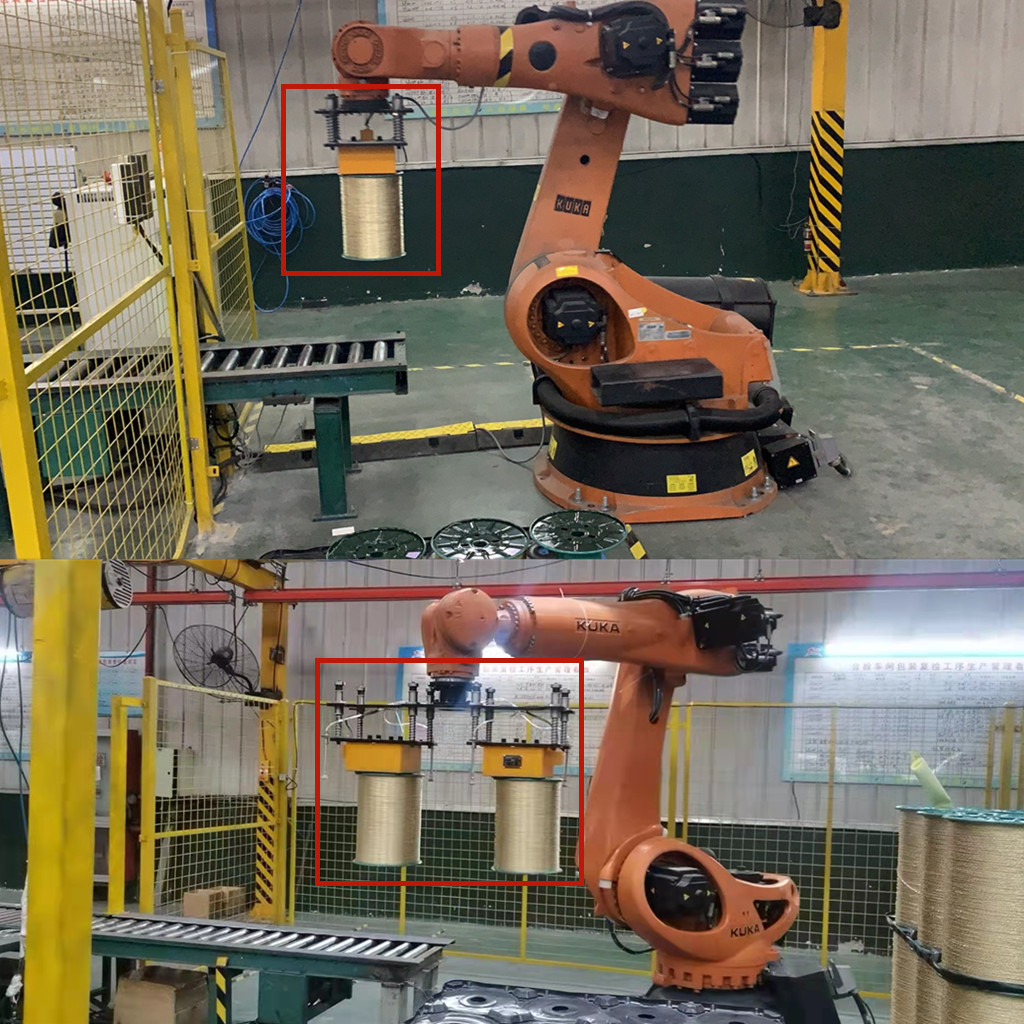

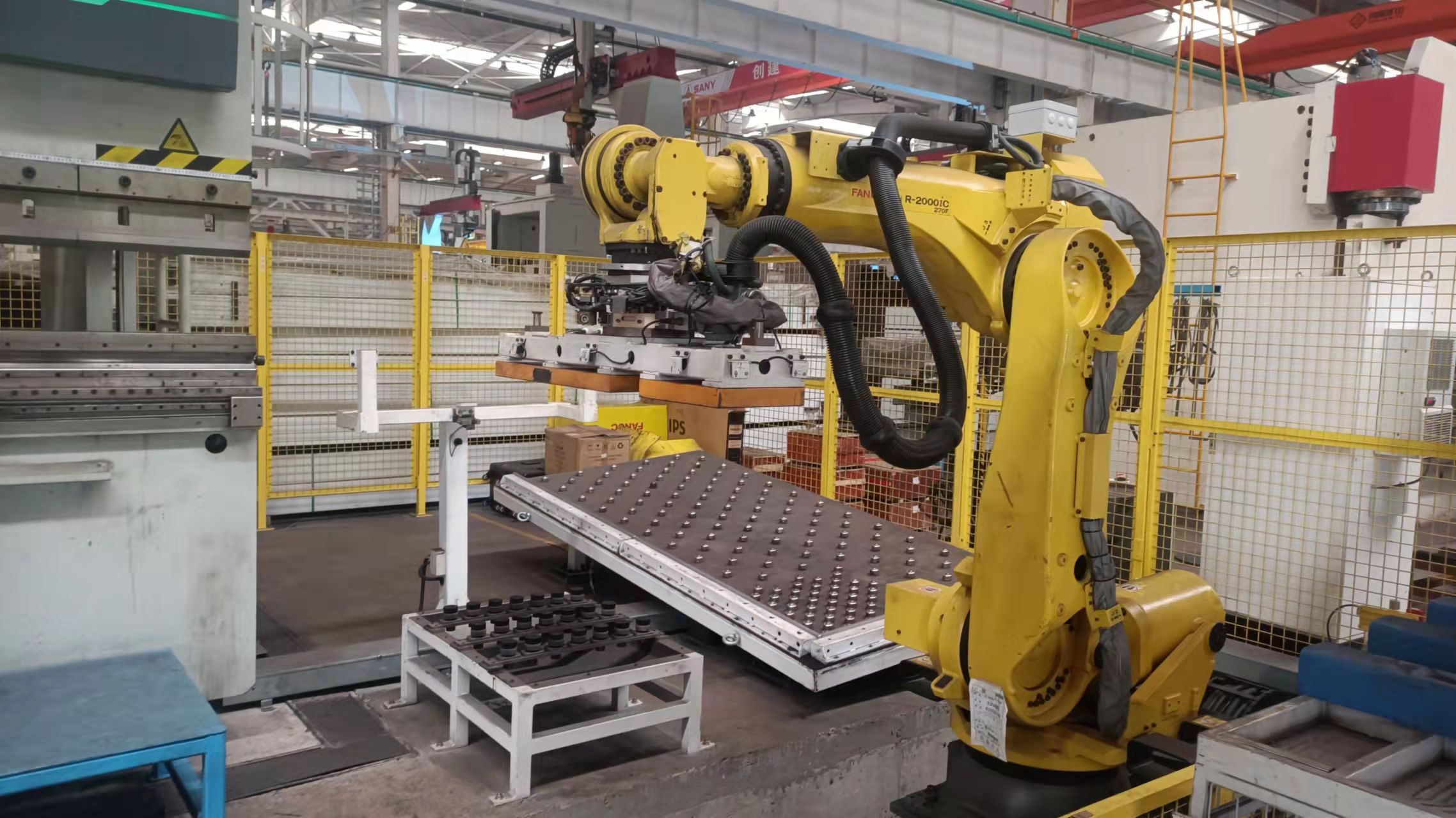

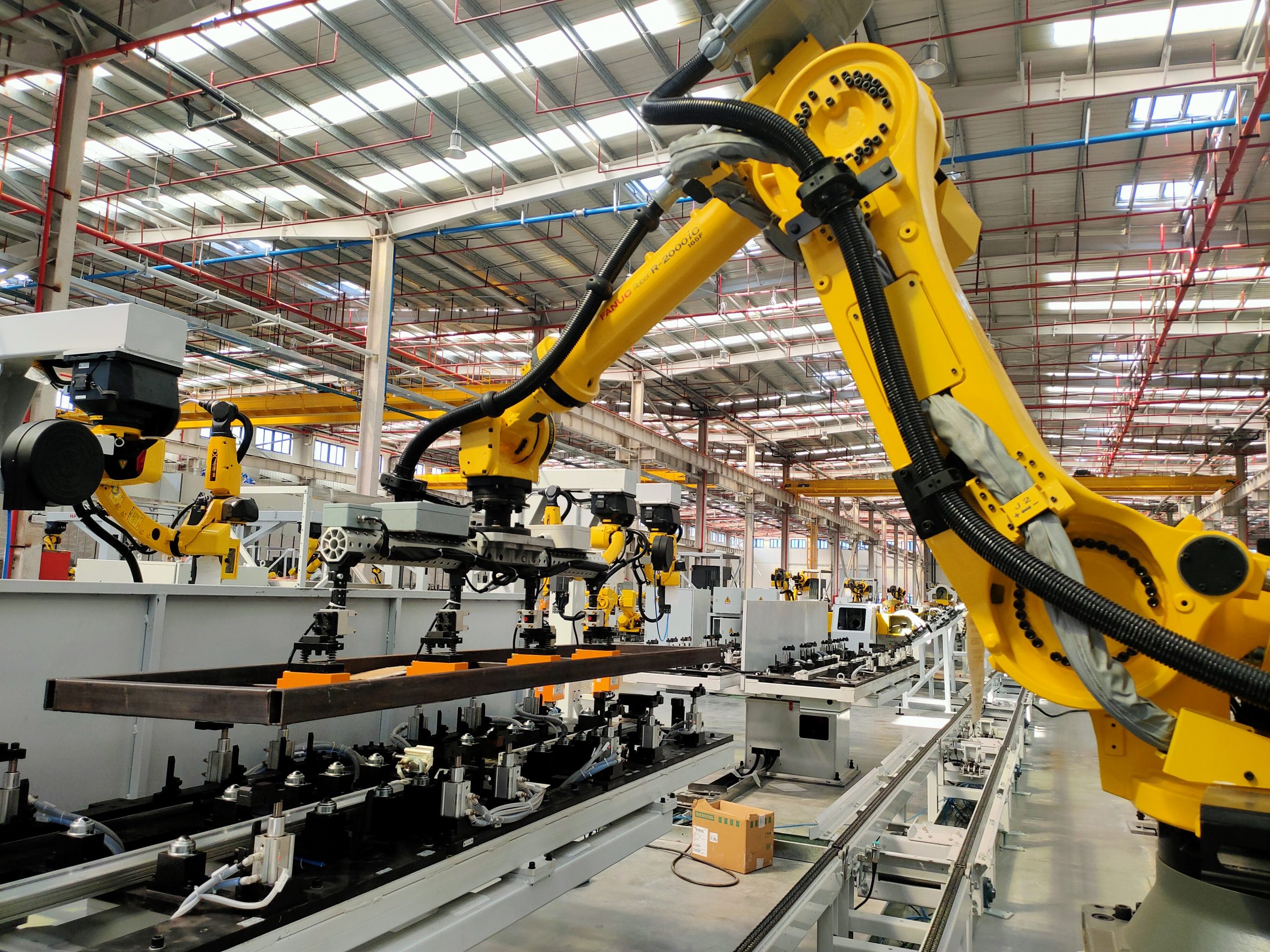

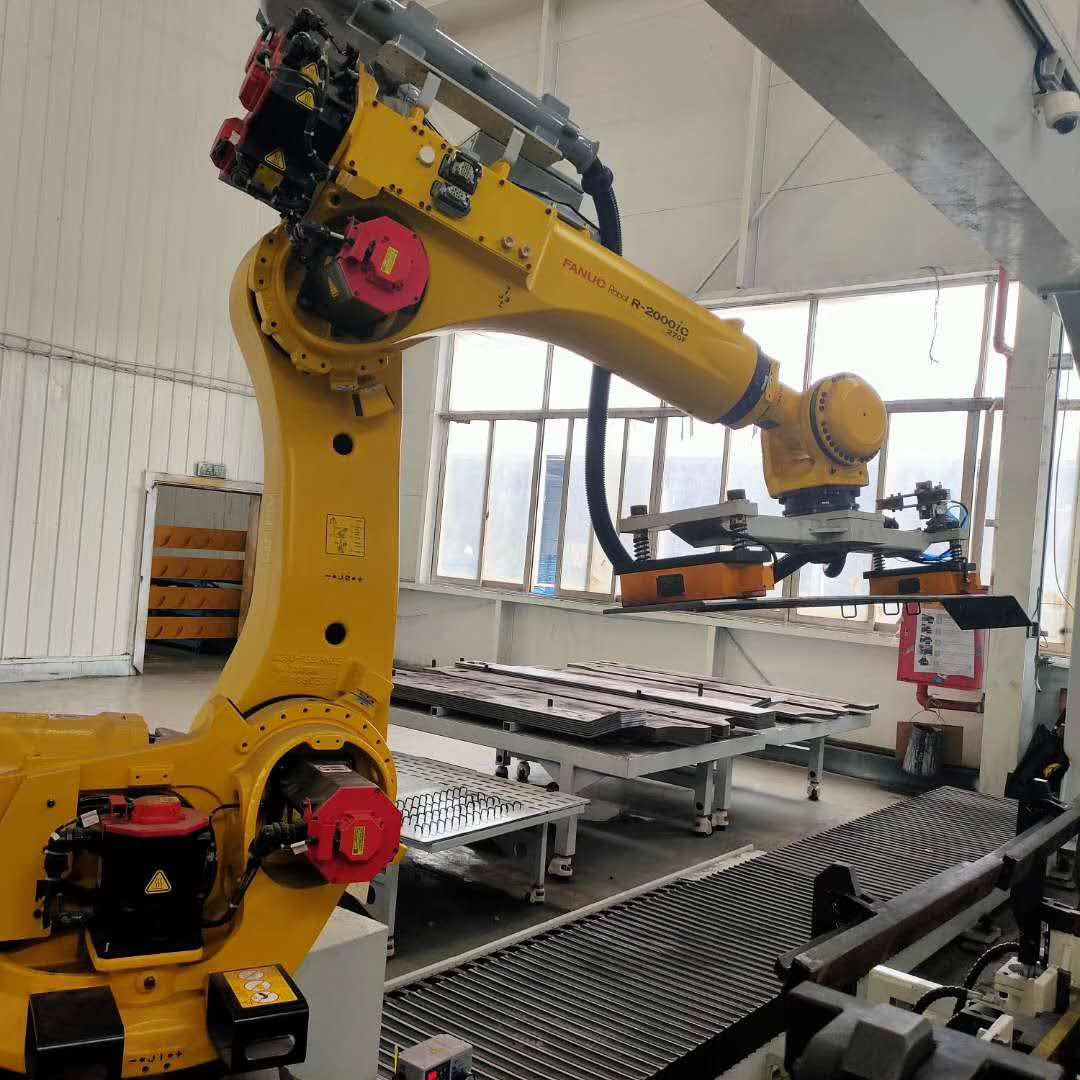

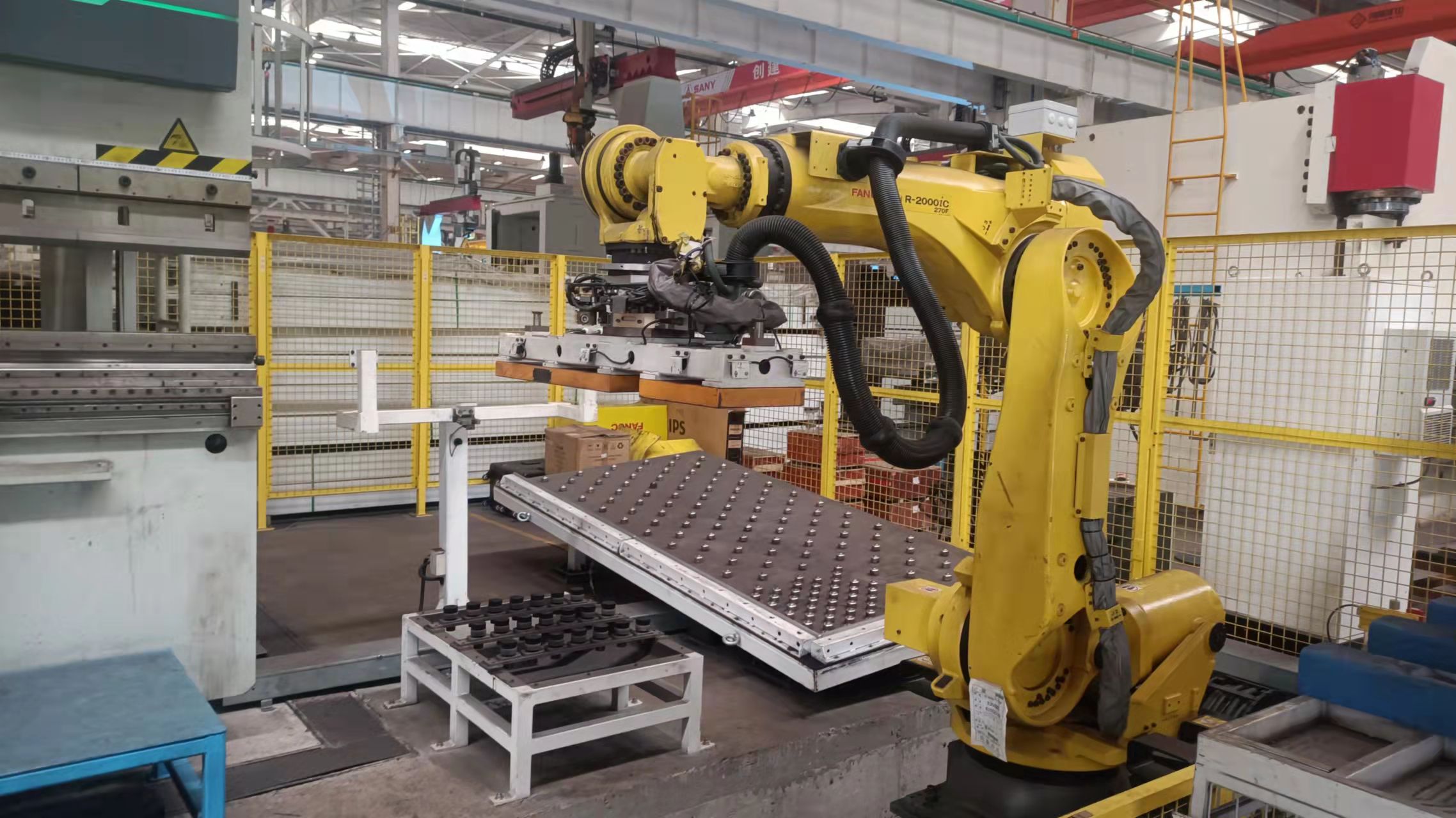

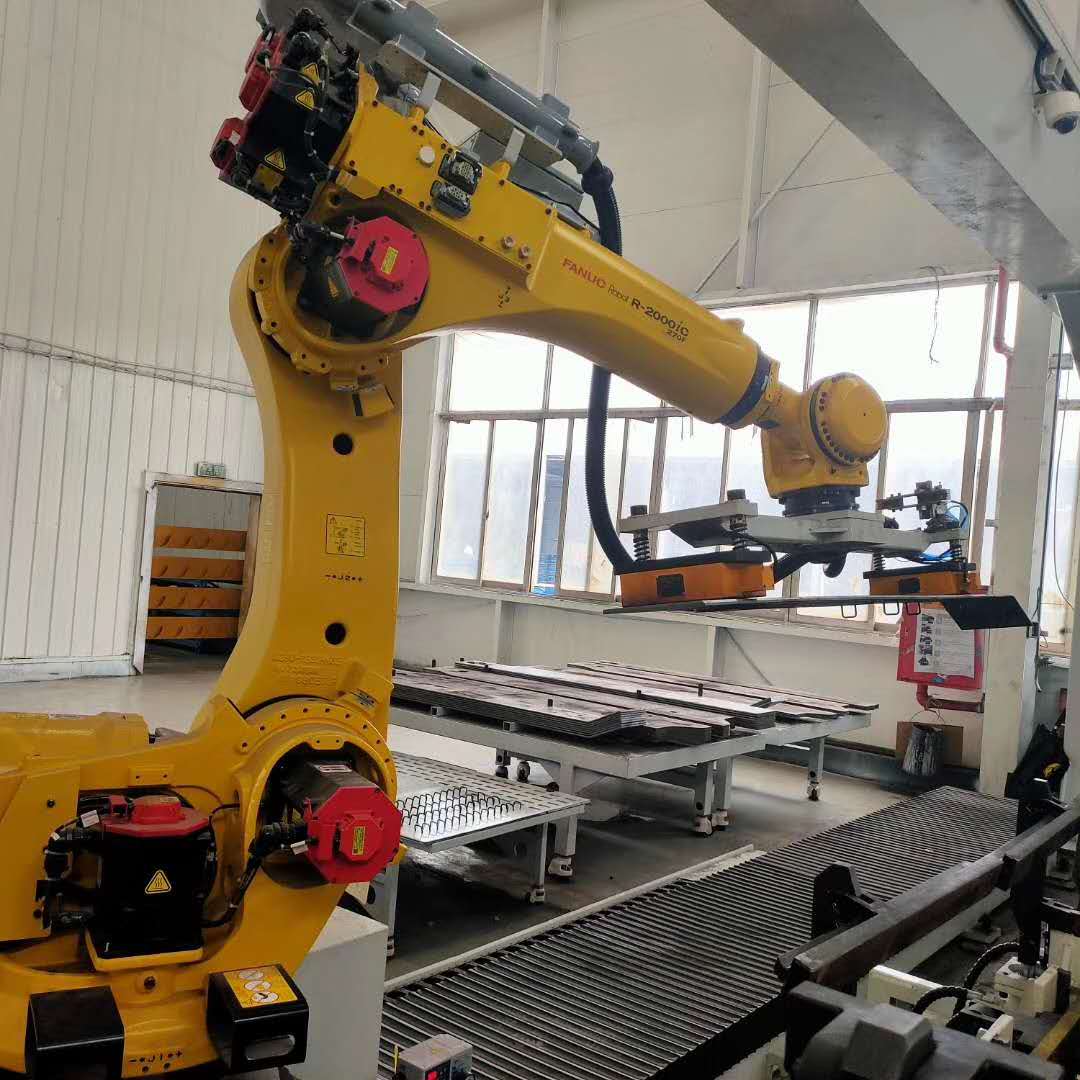

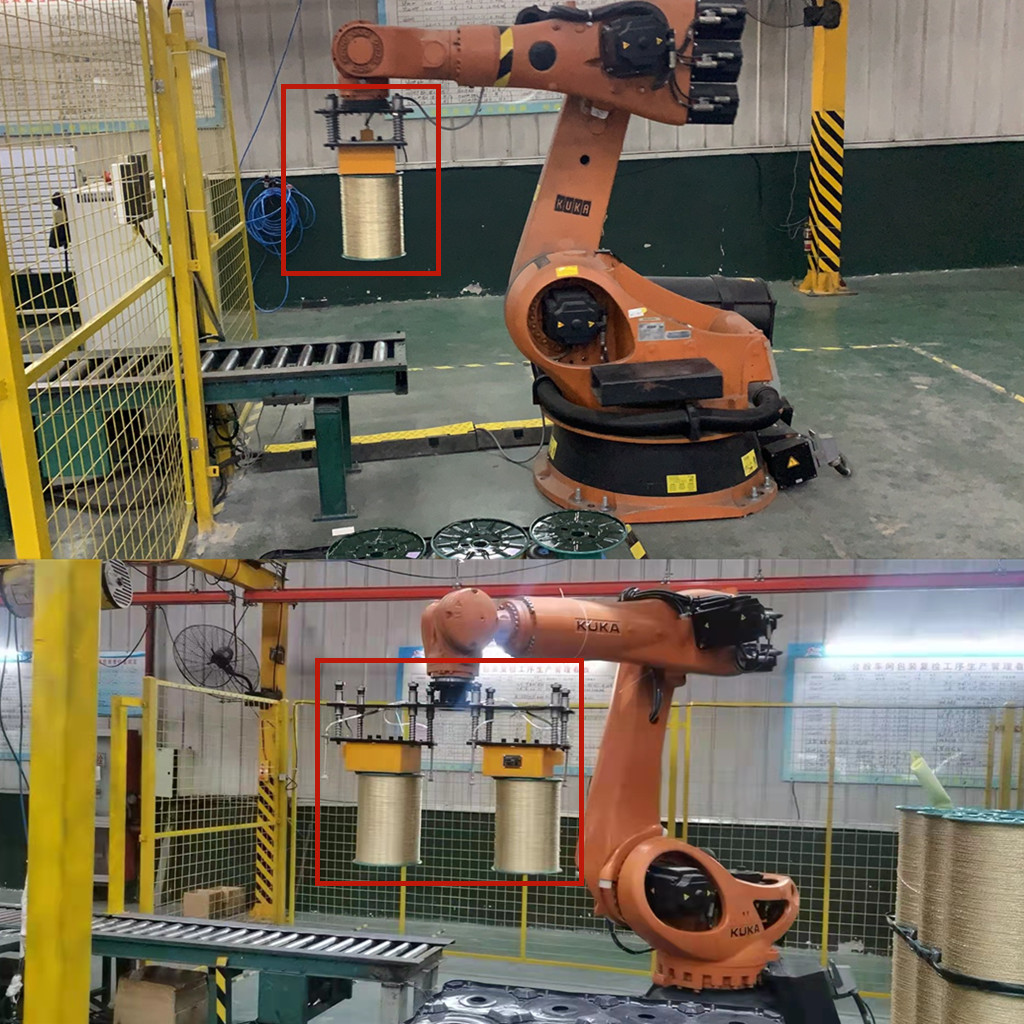

EOAT Tooling Magnet for Robotic Arms

What Does Magnetic End of Arm Tooling Do?

It’s commonly seen in industries where sheet metal and automotive parts are being moved along an assembly line

Where Are They Used?

They are used in a variety of industries where products or components contain ferrous metal. Latest applications of magnet grippers include material handling, palletizing, and bin picking of automobile parts and palletizing metal containers like paint and solvent cans and other steel containers.

Competitive Edges of End of Arm Tooling Magnet:

  • Can provide safe gripping of ferromagnetic workpieces by using the magnetic field of an integrated permanent magnet.
  • Benefit from the energy efficiency and process reliability of this gripper
  • Only a brief current pulse is needed for activation and deactivation, and the workpiece is held very reliably even in emergency-stop situation.
  • Versatile application due to workpiece accessibility free of interfering contours
  • Optimal for ferromagnetic workpieces on which a clamping grip is not possible
  • Energy-efficient use in production

Customize EOAT Tooling Magnet for Your Robots
Depending on the application and load complexity, HVR MAG can specially design and manufacture magnetic end effector with gripping capacity ranging from 3kg-640kg, for steel plate & sheet, steel tube, structural steel, etc. Welcome to visit us to learn more or send your inquiry.
